Overview

#	Actuator	Type	Peak power	At frequency	At drive	Peak force	Peak acceleration
1	HFU-45WBC-01 A	LRA	496 mW	55 Hz	2.2 V	52.3 N	8.35 G
2	ERM No V	ERM	300 mW	9.5783 Hz	1.74 V	11.5 N	3.13 G
3	LRA No 35	LRA	290 mW	114 Hz	3 V	89.2 N	10.7 G
4	ERM 1003C A	ERM	286 mW	8.86806 Hz	1.73 V	7.76 N	4.46 G
5	EXR 4403L-01 A	LRA	282 mW	41 Hz	3 V	24.6 N	6.2 G
6	EXS 2608L-03 A	LRA	260 mW	163 Hz	3 V	59.1 N	10.9 G
7	HF2-50WBC-01 A	LRA	236 mW	48 Hz	2.6 V	31.8 N	7.15 G
8	PS5 DualSense Actuator	LRA	226 mW	58 Hz	2.6 V	33.5 N	5.73 G
9	EXR 3304L-01 A	LRA	154 mW	41 Hz	3 V	25.9 N	7.37 G
10	VC1034B400D	ERM	137 mW	9.47965 Hz	1.74 V	6.96 N	2.37 G
11	HapCoil One	LRA	135 mW	82 Hz	3 V	19.9 N	6.98 G
12	VZ6DL2B0541192	ERM	90.8 mW	8.21702 Hz	1.88 V	5.02 N	1.93 G
13	EXS 241408WA	LRA	88.4 mW	170 Hz	3 V	25.3 N	7.84 G
14	SOE 2608W A	LRA	80.3 mW	86 Hz	3 V	16.5 N	8.98 G
15	EXS 221408KF A	LRA	68.4 mW	170 Hz	3 V	24.4 N	6.15 G

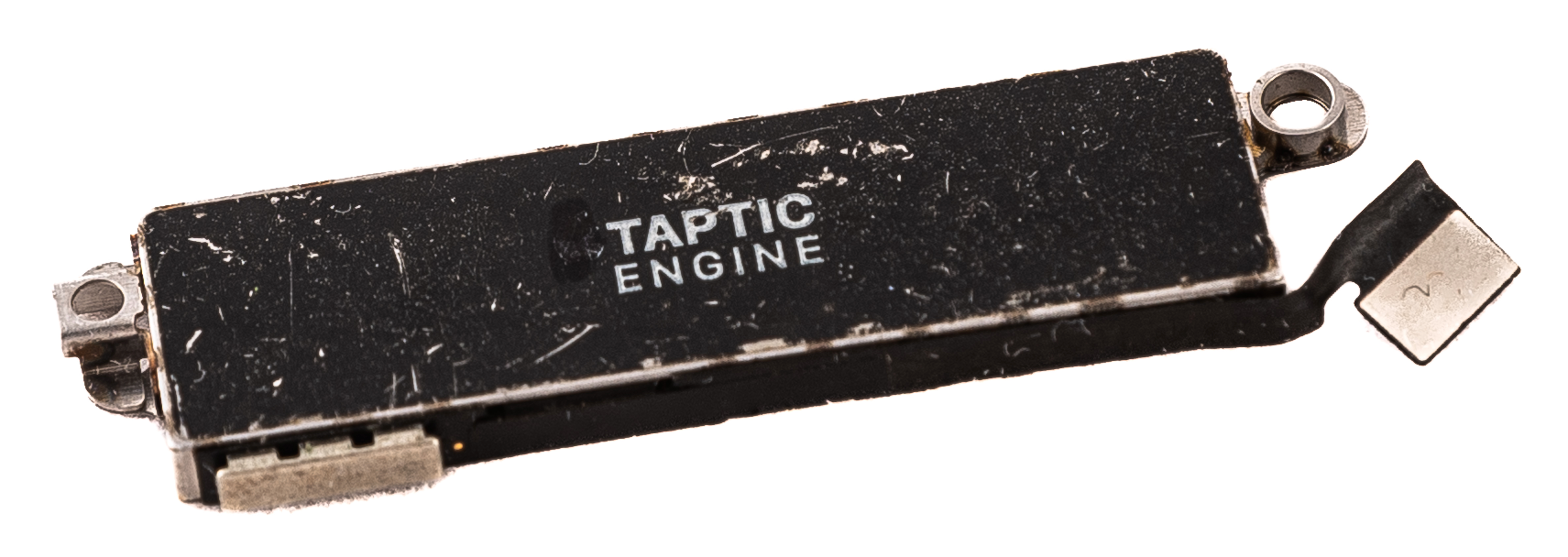

16	Taptic Engine	LRA	49.9 mW	151 Hz	2.6 V	23.4 N	4.61 G
17	LRA No 10	LRA	36.1 mW	308 Hz	3 V	20.2 N	7.2 G
18	VLV200634A	LRA	26.8 mW	170 Hz	3 V	13.5 N	4.26 G
19	LRA No 16	LRA	25.2 mW	176 Hz	2.6 V	13.3 N	5.55 G
20	EXS 261208L A	LRA	16.1 mW	124 Hz	3 V	9.72 N	2.61 G
21	LRA 12235L A	LRA	14.2 mW	264 Hz	2.2 V	9.4 N	6.43 G
22	VG1040003D	LRA	13.1 mW	170 Hz	3 V	8.79 N	3.18 G
23	LRA 08235L A	LRA	6.11 mW	239 Hz	3 V	8.63 N	2.13 G
24	VG0840001D	LRA	5.73 mW	176 Hz	3 V	5.72 N	2.21 G
25	VL91022-160-320H	LRA	2.06 mW	308 Hz	3 V	19.7 N	4.14 G

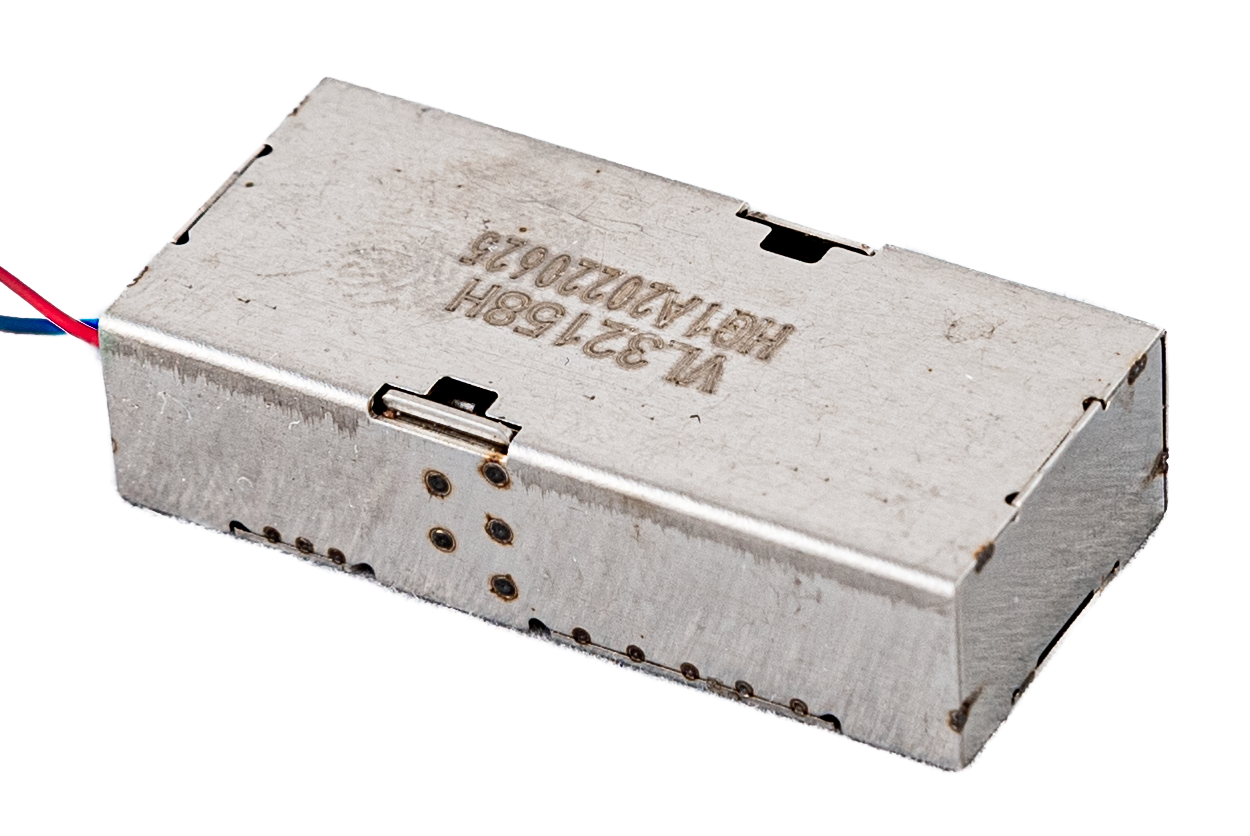

26	VL32158H-L25	LRA	70.1 µW	104 Hz	2.2 V	37.1 N	0.00984 G
